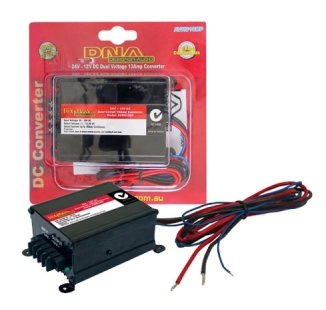

DNA 24V DC TO 12V DC CONVERTER 10A - DUAL OUTPUT AVR010DP

Specifications:

• Fitted with 2 independent 12VDC outputs.
  • Output 1: using the terminals on the side of the case.
  • Output 2: using the 3 wires.
• Red: 12VDC postive output
• Black: negative output
• Blue: 24VDC trigger wire for activating the circuit.
• Input DC voltage range: DC20~30V DC
• Output voltage range: 12V~13.8V
• Continuous power: 10 Amps
• Peak power: 15 Amps
• No load current draw: 20mA
• Max. power efficency: >90%
• Cooling: Air convection
• Input polarity reverse: Diode protection
• Output polarity reverse: Circuit protection
• Over heating: Circuit protection
• Over load: Circuit protection
• Output short: Circuit protection
• Fuse: 15 Amps
• Dimension (LxWxH): 90 x 73 x 45mm
• Weight: 330g
• Packaging: Sliding blister and card with hang hole
