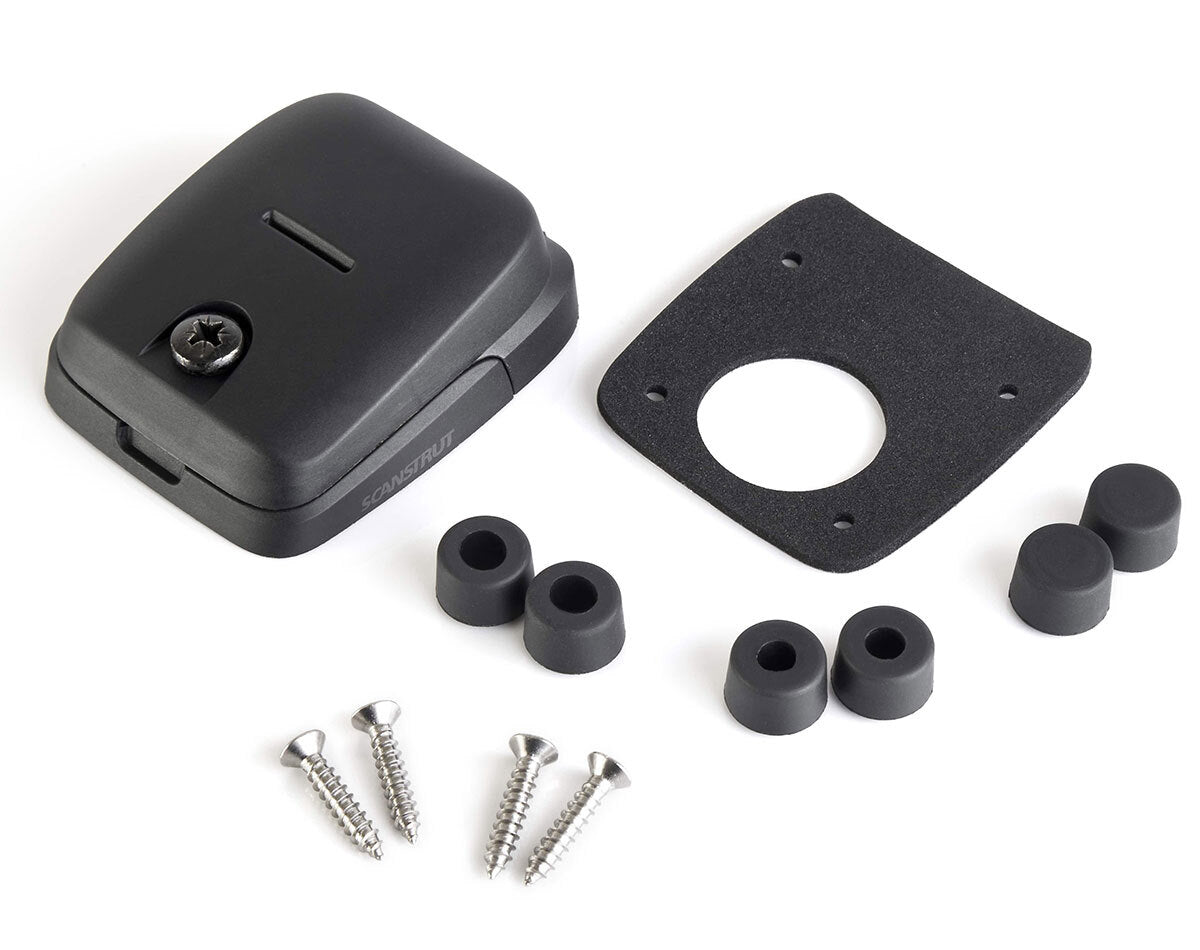

Description
- Single or double horizontal cable seals
- Easy fit cable routing that cuts down your installation time.
- A guaranteed 100% watertight seal (rated IP68)
- Marine sealant not required
- Designed for a range of cable diameters with pre-drilled and blank bungs included
- Perfect for solar panels, light bars, lights and other rooftop electronics.
- Black high impact plastic
- Includes 316-grade stainless steel fixings and a waterproof 3M gasket
- The low-profile dome construction is ultra-strong and impact-resistant
- Captive nuts make for easy assembly and also allow for reliable repeat installations
- UV-stable and hard-wearing materials
- No messy sealant on bungs
See related products for other vertical or horizontal cable seals.
| JPW SKU | Model | Cable Type | Cable Size | Dimensions (mm) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| JPW10432 | DS-H6 | Single | 2 - 6mm | 28.5 | 46 | 20 | 2-6 |
| JPW10433 | DS-HD6 | Double | 2x 5 or 6mm | 54 | 63 | 22 | 5-6 |
| JPW10429 | DS-H10 | Single | 6 - 10mm | 44.5 | 77.5 | 27 | 6-10 |
| JPW10430 | DS-HD10 | Double | 2x 6, 7, 8, 9 or 10mm | 66.5 | 75.1 | 28.5 | 6-10 |
