Description
This range of cabling solutions eliminates time-consuming, sub-standard routing of cables and messy sealant to achieve a 100% watertight installation for your marine cables every time.

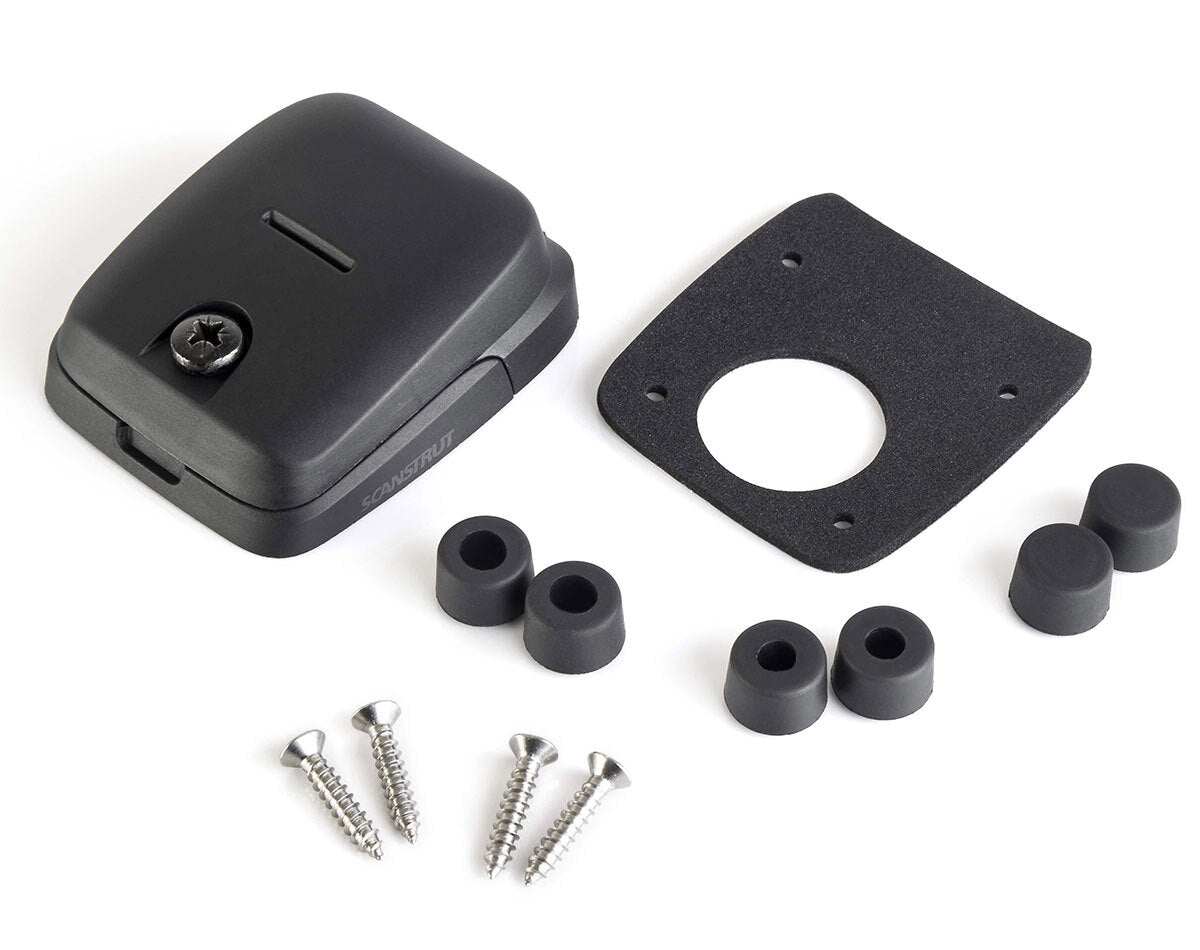

Each unit supplied with both pre-drilled inner seals to suit specific sized cables, and blank bungs so you can cut them to fit your cable perfectly, creating the watertight seal. Simply select the unit that is large enough for your connector/plug to fit through.
Captive nuts make for easy assembly and also allow reliable repeat installations.
The aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.
These solutions are the only guaranteed and proven watertight installation for your antenna, lights, solar panel or other rooftop electrionic cables.
Features:
- Single or double horizontal cable seals
- Easy fit cable routing that cuts down your installation time.
- A guaranteed 100% watertight seal (rated IP68)
- Marine sealant not required
- Designed for a range of cable diameters with pre-drilled and blank bungs included
- Perfect for solar panels, light bars, lights and other rooftop electronics.
- Black high impact plastic
- Includes 316-grade stainless steel fixings and a waterproof 3M gasket
- The low-profile dome construction is ultra-strong and impact-resistant
- Captive nuts make for easy assembly and also allow for reliable repeat installations
- UV-stable and hard-wearing materials
- No messy sealant on bungs
See related products for other vertical or horizontal cable seals.
| JPW SKU | Model | Cable Type | Cable Size | Dimensions (mm) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| JPW10432 | DS-H6 | Single | 2 - 6mm | 28.5 | 46 | 20 | 2-6 |
| JPW10433 | DS-HD6 | Double | 2x 5 or 6mm | 54 | 63 | 22 | 5-6 |
| JPW10429 | DS-H10 | Single | 6 - 10mm | 44.5 | 77.5 | 27 | 6-10 |
| JPW10430 | DS-HD10 | Double | 2x 6, 7, 8, 9 or 10mm | 66.5 | 75.1 | 28.5 | 6-10 |
