Description
This premium range of cable seals provide easy fit cable routing that cuts down your installation time. A compact, low-profile solution that not only enhances aesthetics but also guarantees a 100% watertight installation.
Each unit supplied with both pre-drilled inner seals to suit specific sized cables, and blank bungs so you can cut them to fit your cable perfectly, creating the watertight seal. Simply select the unit that is large enough for your connector/plug to fit through. The split-seal option eliminates the need to remove the cable connector during installation.
The low-profile design reduces the overall seal height by up to 71% when compared to the standard range by concealing the seal technology below the mounting surface. This results in a cleaner, more refined appearance.
Crafted with attention to detail, the marine-grade construction has exceptional corrosion resistance and durability making it the perfect choice for withstanding the elements, ensuring your installation remains intact even in the harshest conditions. Choose from either marine-grade black anodised aluminium or 316-grade stainless steel.
Featuring captive nuts to simplify assembly and allow for reliable repeat installations.
Designed for a range of cable diameters and connector sizes, these cable seals are ideal for almost every installation.
Features:
- Single vertical cable seals
- 100% Waterproof rating: IP68 (dust-tight and protected against complete submersion in water (up to 1m deep for 15mins)
- Install without removing cable connector
- Pre-drilled, blank and split bungs included
- Designed for a range of cable diameters and connector sizes

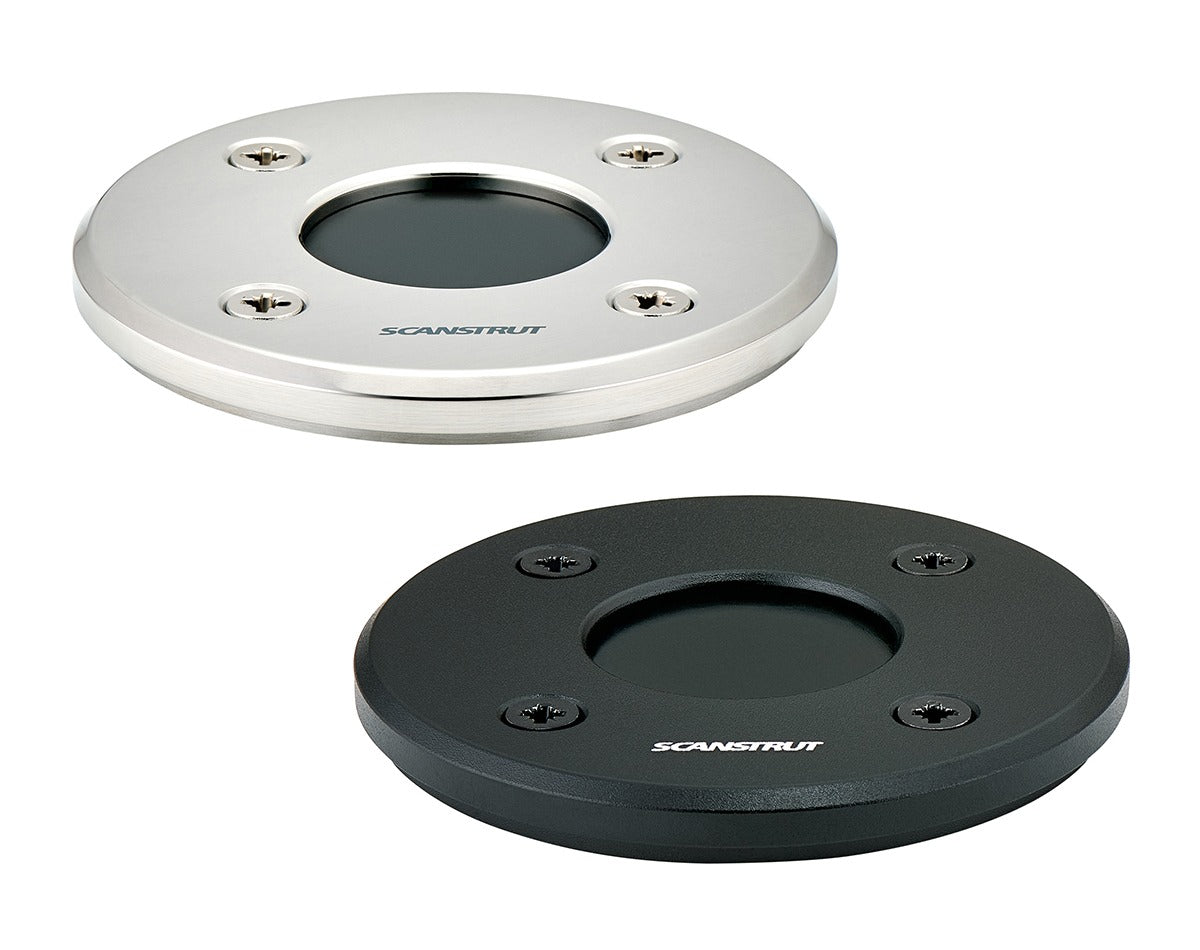

- Constructed from black marine-grade anodised aluminium or 316-grade stainless steel
- Marine grade 316 stainless steel fasteners included
- The low-profile dome construction is ultra-strong and impact-resistant
- Captive nuts make for easy assembly and also allow for reliable repeat installations
- UV-stable and hard-wearing materials
- No messy sealant on bungs
- Each cable seal is installed by using a hole saw keeping seal technology below the mounting surface
- Perfect for solar panels, light bars, rooftop electronics, and more
See related products for other vertical or horizontal cable seals.
JPW SKU (Black Aluminium) |
JPW SKU (Stainless Steel) |
Model | Cable Size | Connector Size (up to) |
Dimensions (mm) - see diagram within images | |||
---|---|---|---|---|---|---|---|---|
A | B | C | D | |||||
JPW10399 | JPW10398 | LP-16 | 2-8mm | 16mm | 50 | 16 | 2 - 8 | 5 |
JPW10401 | JPW10402 | LP-21A | 4-9mm | 21mm | 60 | 21 | 4 - 9 | 6.5 |
JPW10403 | JPW10404 | LP-21B | 9-14mm | 21mm | 60 | 21 | 9 - 14 | 6.5 |
JPW10405 | JPW10406 | LP-30 | 9-14mm | 30mm | 76 | 30 | 9 - 14 | 6.5 |
