Description

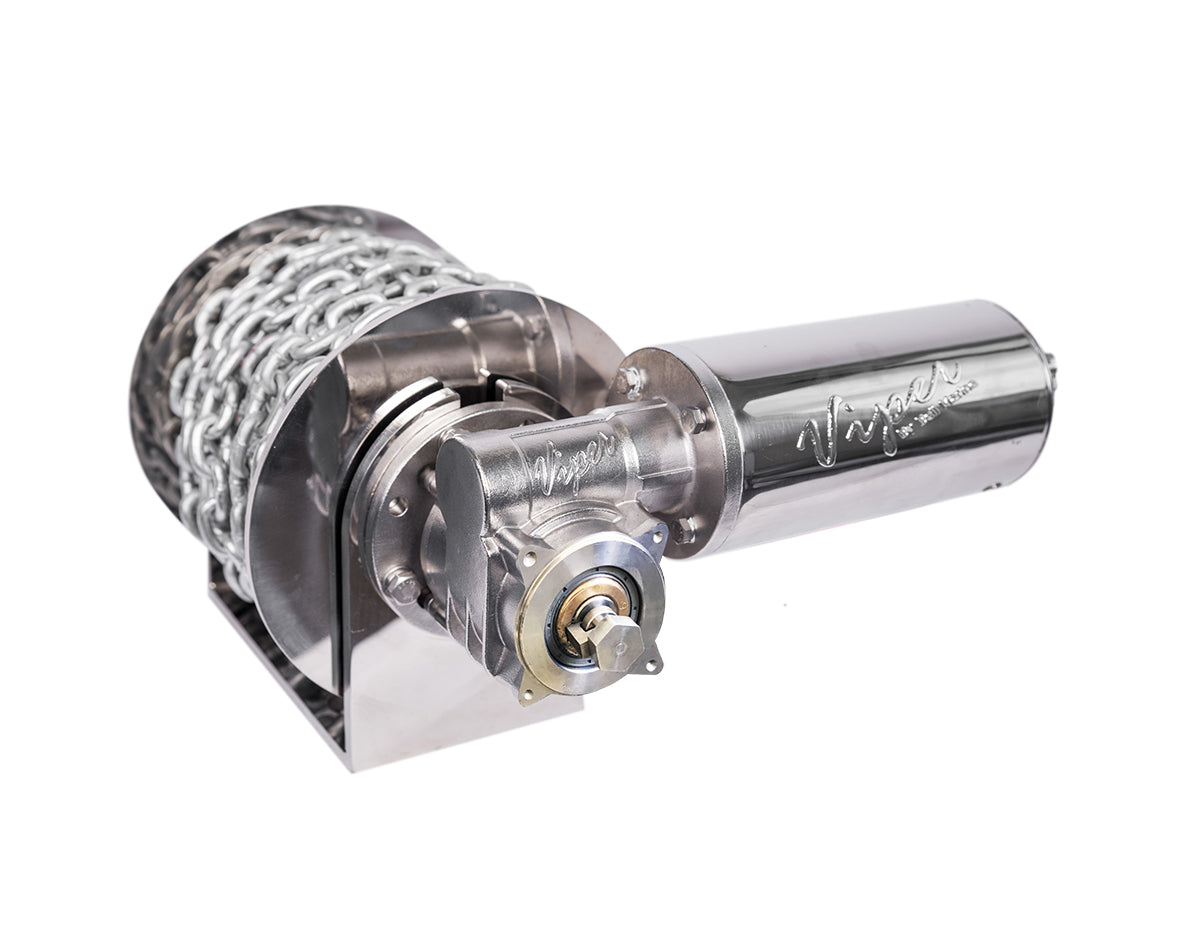

The Viper S-series Micro Winch features an all-stainless steel construction including a 316-grade stainless steel gearbox.
Designed to fit into bow riders, tinnies, walk-around’s, bass boats and any boat with restricted anchor well space or even none at all.
Features:
- 28mm stainless steel shaft with three support bearings
- 1000W stainless steel submersible electric motor
- 316-grade polished stainless steel plate
- 316-grade stainless steel worm drive gearbox
- 3600 motor rotation, 16 different positions
- Max fall rate: 45m per minute
- Max retrieval rate: 40m per minute
- Suit vessel length: 4 to 8 meters
- Max load: 180kgs
- Weight: 13kgs
- Motor water protection rating: IP68
- 5 year warranty

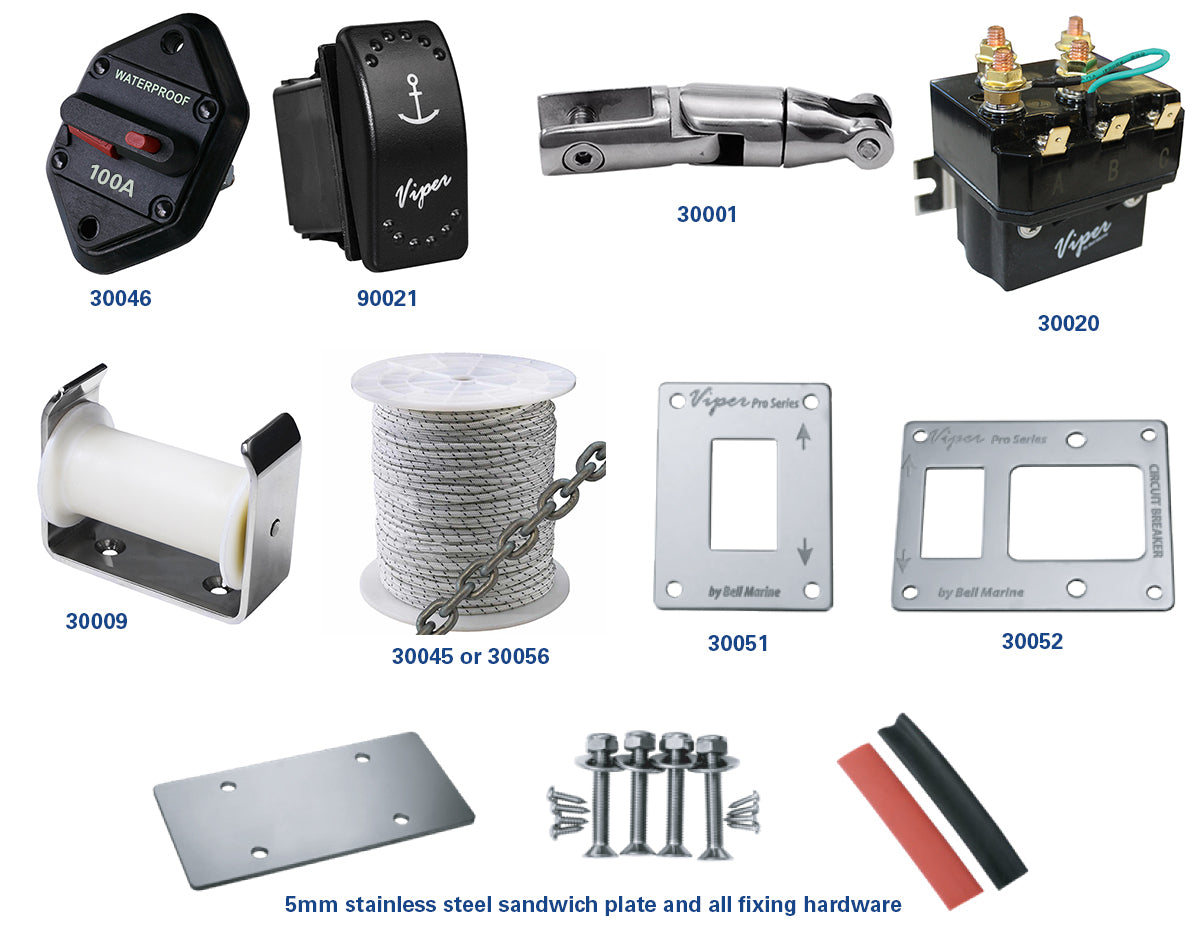

Kit Bundle Includes:
- 1x Viper Pro S-Series 1000 Micro Winch
-
Choice of rope kit:
- 60m x 6mm Double Braid Premium rope
-
100m x 4mm 12 Plait Uhmwpe Hi-Spec 3000 rope
- Hi-Spec rope kit also includes: 10m x 8mm 3 Strand Polyester shock cord spiced at both ends
- 6m x 6mm Galvanised short link anchor chain
- Viper pro series anchor swivel - small
- Viper deluxe anchor roller - small
- 200amp reversing solenoid
- LED illuminated marine rocker switch
- Viper laser etched led illuminated switch cover
- 100 amp flush mount circuit breaker with rubber seal
- Single LED switch stainless steel face plate
- Combo led switch & circuit breaker s/s face plate
- 5mm stainless steel sandwich plate
- All fixing hardware
- Installation notes & wiring diagram
| JPW SKU | Rope | Shock Cord | Chain | Breaking Strain |
|---|---|---|---|---|
| JPW12855 | 100m x 4mm (Hi-Spec 3000) | 10m x 8mm (3 Strand Polyester) | 6m x 6mm (Galvanised Short Link) | 1,550 kg |
