Description

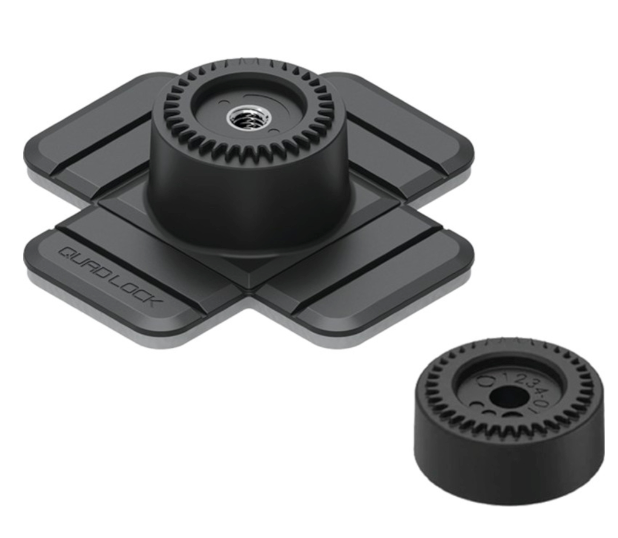

Flexible Adhesive Base For Quad Lock 360
The Quad Lock 360 consists of a compatible HEAD, ARM, and BASE which enables you to configure a smartphone mount for your active lifestyle. All Quad Lock 360 products & compatible accessories will be marked with the 360 Compatible badge.
Mount Your Quad Lock Case To Flat Or Curved Surfaces
This Quad Lock 360 Flexible Adhesive Base allows you to fit your mount to a number of different flat and curved surfaces, however, it is not intended for severely curved surfaces (eg. 180 degrees). Using a super secure 3M Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.
Technical Details
Made from tough, nylon construction, the Flexible Adhesive Base is 60mm x 60mm with a height of 18.3mm. A 10mm Spacer and 2 x Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM. Each tab is 28mm wide and has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner. The adhesive used is the renowned, 3M VHB Adhesive for extra strong grip and this product is compatible with all Quad Lock 360 ARMs and HEADs, and will adhere to smooth, non-textured, non-porous surfaces.Please ensure all surfaces are thoroughly cleaned and dry before applying the Flexible Adhesive Base.
Will Adhere To These Surfaces
. Un-coated Glass (eg. windshield)
. Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. plastic car dash, console)
. Metals
. Fibreglass
. Sealed wood
Recommended Applications
. Interior of cars / 4x4
. Boats
. Caravans
. Any low vibration element
Not Recommended For The Following Substrates
. Rubber, TPU, TPE
. Leather
. Silicone
. Soft touch coating or paint
. Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
. Unsealed wood
Not Recommended For The Following Vehicles
. Motorcycles
. Scooters
. ATVs
. Anything that causes high vibrations or receives constant exposure from outdoor elements
Mount Your Quad Lock Case To Flat Or Curved Surfaces
This Quad Lock 360 Flexible Adhesive Base allows you to fit your mount to a number of different flat and curved surfaces, however, it is not intended for severely curved surfaces (eg. 180 degrees). Using a super secure 3M Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.
Technical Details
Made from tough, nylon construction, the Flexible Adhesive Base is 60mm x 60mm with a height of 18.3mm. A 10mm Spacer and 2 x Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM. Each tab is 28mm wide and has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner. The adhesive used is the renowned, 3M VHB Adhesive for extra strong grip and this product is compatible with all Quad Lock 360 ARMs and HEADs, and will adhere to smooth, non-textured, non-porous surfaces.Please ensure all surfaces are thoroughly cleaned and dry before applying the Flexible Adhesive Base.
Will Adhere To These Surfaces
. Un-coated Glass (eg. windshield)
. Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. plastic car dash, console)
. Metals
. Fibreglass
. Sealed wood
Recommended Applications
. Interior of cars / 4x4
. Boats
. Caravans
. Any low vibration element
Not Recommended For The Following Substrates
. Rubber, TPU, TPE
. Leather
. Silicone
. Soft touch coating or paint
. Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
. Unsealed wood
Not Recommended For The Following Vehicles
. Motorcycles
. Scooters
. ATVs
. Anything that causes high vibrations or receives constant exposure from outdoor elements
. Adhesive base for mounting Quad Lock 360 to flat or curved surfaces . Quad Lock 360 compatible . Super secure 3M adhesive . 4 Tabs which can be bent to match the curved surface . 3M VHB tape is a single use adhesive and is not reusable . Ensure mount position does not obstruct vehicle safety features such as airbags . Please ensure all surfaces are thoroughly cleaned and dry before applying the Flexible Adhesive Base Box Contents . 1 x Flexible Adhesive Base . 1 x 10mm Spacer . 1 x M5x30 screw (for connecting Spacer to Lever Head or 360 Arms) . 1 x M5x45 screw (for connecting Spacer to Weatherproof Wireless Charging Head) . 1 x Isopropyl Alcohol Wipe
